Adjustment and Repair of Vinyl Doors: A Complete Guide
Vinyl doors are a durable and energy-efficient solution for American homes, but even the highest-quality unit can develop issues over time. A sagging door, drafts, and a jammed handle are common problems faced by homeowners from California to New York. This guide provides a detailed look at diagnosing, adjusting, and repairing vinyl doors, and explains why calling a qualified technician is the best solution for complex cases.
Unsure of your skills or facing a serious issue? Do not risk your home's security and energy efficiency! An experienced technician from Fix Concierge Service will quickly diagnose the problem and perform adjustments or repairs with a guarantee. Find a trusted door specialist in minutes through our app.
Troubleshooting: How to Pinpoint the Problem
Before grabbing tools, perform a thorough inspection. Early diagnosis allows you to address issues early, saving time and money.
Visual Clues:
Uneven Gaps: The distance between the door and the frame should be consistent (about 1/8 inch) around the entire perimeter. Use a credit card to check-it should slide into the gap with uniform resistance.
Seal Deformation: Inspect the rubber gasket around the entire perimeter. Cracks, tears, or permanent flattening mean it needs replacement.
Door Misalignment: Close the door and look at the seam. An obvious skew is visible-one side will sit tighter against the frame than the other.
Functional Clues:
Resistance When Moving: The door should open and close smoothly, without jerking or excessive force.
Door Drift: The door should not open or close on its own-this indicates an imbalance.
Heat Loss: On a cold day, run your hand along the closed door's edge-a feeling of cold air indicates a poor seal.
Noise Insulation: Increased street noise also points to a compromised weather seal.
How a Modern Vinyl Door Works
Understanding the design is key to proper repair. A modern vinyl door is a complex system where every part has a role:
Frame (Jamb): A rigid structure anchored in the wall opening, made from a multi-chambered vinyl profile with a steel reinforcement bar inside for strength.
Door Panel (Sash): The moving part, also made of a reinforced vinyl profile. Its weight can be 100-150 pounds or more for entry doors.
Hardware Channel: A standardized groove around the door panel where all the locking mechanisms are installed. In the US, systems with a 3/8-inch to 1/2-inch channel are common.
Hinges: Come in two main types: standard butt hinges and tilt-to-clean hinges (common for patio doors). Heavy-duty entry door hinges are rated for loads up to 200 pounds.
Locking Mechanism: Includes:
A handle with a latch
· Rollers (or cams): Moving parts on the edge of the door.
· Strike Plates: Mounted on the frame, the rollers engage them when the door is closed.
· Multi-point locking pins (anti-lift security features).
· Weatherstripping: Typically two gaskets-one on the door and one on the frame-that create an airtight seal.

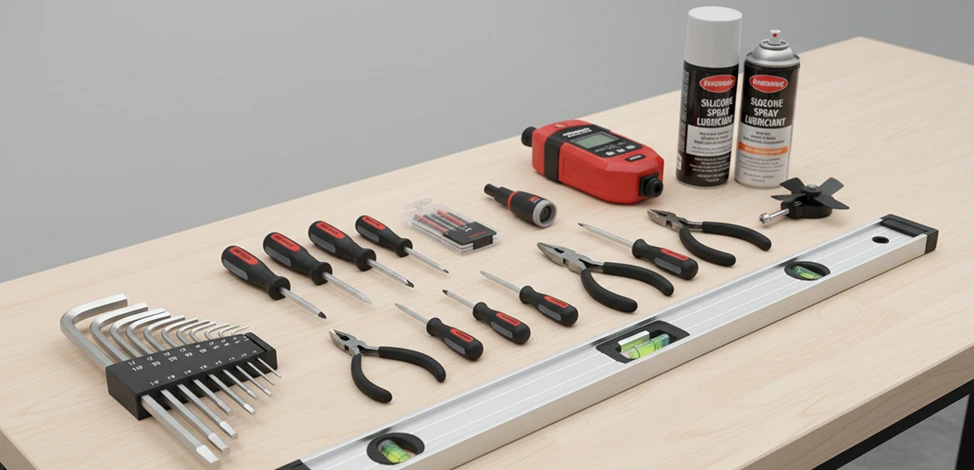

A Professional Adjustment Tool Kit
For quality work, you need more than just a single hex key. A proper kit includes:
· Set of Hex Keys (Allen Wrenches): Sizes from 1/16" to 1/4".
· Screwdriver Set: Phillips (#2, #3) and flathead of various sizes.
· Adjusting Keys for Rollers: Some manufacturers use star-shaped (Torx) or proprietary keys.
· Needle-Nose Pliers for securing movable parts.
· A Carpenter's Level at least 24 inches long for checking alignment.
· Laser Level for complex diagnosis of frame misalignment.
· Thermal Leak Detector or Anemometer for objective assessment of drafts (used by pros).
· Silicone Spray Lubricant for hardware and a silicone- or glycerin-based seal conditioner.
Do not have these tools or prefer not to buy them? A Fix Concierge technician arrives fully equipped, including specialized keys and diagnostic tools, to accurately identify and fix the problem right the first time.

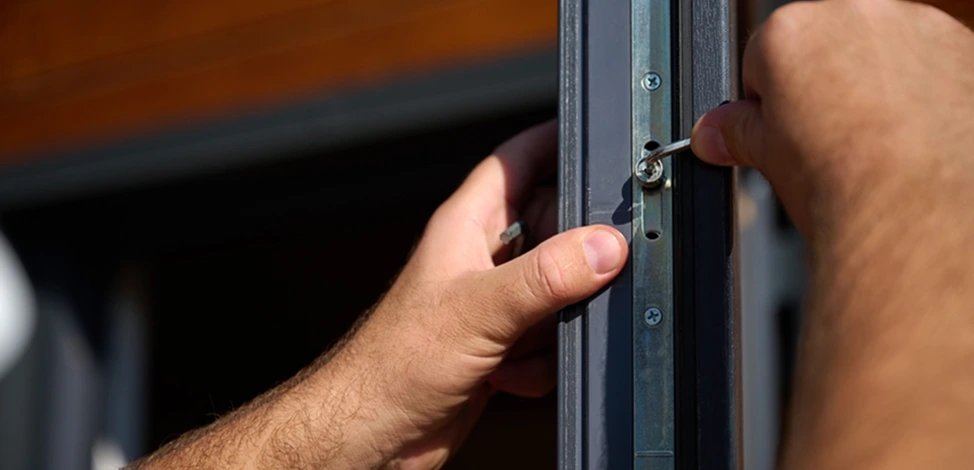

Detailed Adjustment Instructions: Step-by-Step
Fixing Sagging (Vertical Adjustment)
Symptom: The bottom corner of the door on the hinge side scrapes against the threshold.
Mechanism: The vertical adjustment screw is located at the top or bottom of the hinge. It moves the door up or down.
Process:
- Open the door 90 degrees.
- Locate the vertical adjustment screw on the hinge.
- Turn the hex key clockwise to raise the door, counterclockwise to lower it.
- Make small adjustments (no more than 2-3 full turns at a time), then check the result.
On heavy doors, you may need to adjust both the top and bottom hinges.
Horizontal Adjustment (Shifting the Door Side-to-Side)
Symptom: The door rubs against the frame on the side, or the top/bottom gap is uneven.
Mechanism: Horizontal adjustment screws are located on the side of the hinges.
Process:
- Open the door.
- Locate the horizontal adjustment screws on the hinges.
- Important: You may need to slightly loosen the hinge's mounting screws first.
- Turn the adjustment screw to shift the door in the desired direction.
Re-tighten the mounting screws and check the door's operation.
Adjusting the Seal Pressure (Fixing Drafts)
Symptom: Drafts, poor soundproofing, a piece of paper pulls out easily from the closed door.
Mechanism: Adjusted by turning the rollers on the edge of the door and/or shifting the strike plates on the frame.
Process:
- Find all the rollers around the door's edge. There can be 3 to 7 of them.
- Turn each roller with a hex key or pliers.
Guideline: A mark on the roller. Turning it toward the gasket increases pressure; turning it outward decreases it.
For fine-tuning, you can slightly adjust the position of the strike plate on the frame toward the seal.
Adjusting and Repairing the Door Handle
Loose Handle: Two screws are hidden under a decorative cover. Tighten them with a Phillips screwdriver.
Stiff Operation: Remove the handle, clean the mechanism of dust, and lubricate with silicone spray.
Jamming When Turning: Often caused by a misaligned strike plate blocking the roller. Loosen its screws, adjust its position, and re-tighten.
When DIY Repair is Impossible or Unsafe: 5 Reasons to Call a Pro
Warped Frame or Door Panel: A crack in the vinyl profile or a frame distorted by house settling requires professional intervention and potentially full unit replacement.
Complete Hardware Failure: If adjustment screws are stripped or hinges are loose, the entire hardware set needs replacement-a complex job requiring precision.
Issues with the Insulated Glass: A broken glass seal (condensation between panes) or cracked glass requires a custom-ordered, energy-efficient replacement panel.
Complex Security Systems: Adjusting doors with reinforced, multi-point locking mechanisms requires specialized knowledge and tools.
Unclear Diagnosis: If you cannot identify the root cause, further DIY attempts might worsen the problem.
"In 70% of our service calls, our technicians see the consequences of incorrect DIY adjustments," say Fix Concierge experts. "Stripped adjustment screws, bent strike plates, and seals damaged by over-tightening. Fixing these 'repair attempts' often takes more time and money than a qualified solution from the start."
A Comprehensive Solution: Why Calling a Pro via Fix Concierge is Reliable and Cost-Effective
DIY door adjustment can take an inexperienced person hours with no guarantee of success. A professional can typically complete it in 30-60 minutes, with a guarantee on the work.
Advantages of Using Fix Concierge Service:
Saves Time: No need to research, buy tools, or experiment.
Quality Guarantee: All work meets industry standards and is guaranteed for up to 6 months.
Professional Diagnosis: The technician uses experience and specialized tools to accurately find the root cause.
Prevents Future Issues: The specialist will fix the current issue and perform a maintenance check to prevent future breakdowns.
Safety: A properly adjusted door is a secure door. The technician will ensure locks and security features work correctly.
How It Works:
Download the app for iPhone or Android.
Create a Detailed Task: Describe the issue (e.g., "Vinyl patio door is sagging and dragging").
Get Matched with a Pro: You will quickly receive a notification with your assigned technician's name, photo, rating, and scheduled arrival time.
Pay Conveniently: After you approve the work, pay the technician in cash or via a secure in-app transfer.
Do not let a small problem become a major repair! Trust your door's health to the professionals at Fix Concierge Service. Download the app today and say goodbye to drafts, squeaks, and stuck handles for good.
